Air Cooler
A40/A60 Series

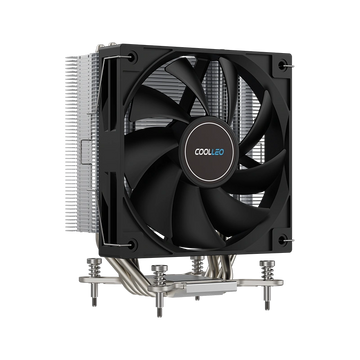

CL-A40
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x94x148mm
Heat pipe: Ф6mm*4
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 65.6CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 1600RPM±10%
Noise: 26dB(A)
Fan interface: 4PIN PWM
Bearing type: HDB
CL-A40-ARGB
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x94x148mm
Heat pipe: Ф6mm*4
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 65.6CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 1600RPM±10%
Noise: 26dB(A)
Fan interface: 4PIN PWM
Bearing type: HDB
CL-A60 ARGB
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x115x151mm
Heat pipe: Ф6mm*6
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 74.9CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 2000RPM±10%
Noise: 27.8dB(A)
Fan interface: 4PIN PWM
Bearing type: HDB
B40
4 pcs Optimized heat pipes, Intelligent digital display
CL-B40 DIG
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x94x150mm
Heat pipe: Ф6mm*4
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 65.6CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 1600RPM±10%
Noise: 26dB(A)
Fan interface: 4PIN PWM
Bearing type: HDB
CL-B40 Lite ARGB
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x94x150mm
Heat pipe: Ф6mm*4
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 74.9CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 2000RPM±10%
Noise: 27.8dB(A)
Fan interface: 4PIN PWM
Bearing type: HDB
CL-B40 DIG ARGB
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x94x150mm
Heat pipe: Ф6mm*4
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 65.6CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 1600RPM±10%
Noise: 26dB(A)
Fan interface: 4PIN PWM
Bearing type: HDB
CL-B40 DIG BK
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x94x150mm
Heat pipe: Ф6mm*4
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 65.6CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 1600RPM±10%
Noise: 26dB(A)
Fan interface: 4PIN PWM
Bearing type: HDB
CL-B40 DIG BK ARGB
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x94x150mm
Heat pipe: Ф6mm*4
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 65.6CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 1600RPM±10%
Noise: 26dB(A)
Fan interface: 4PIN PWM
Bearing type: HDB
CL-B40S DIG
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x94x150mm
Heat pipe: Ф6mm*4
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 65.6CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 1600RPM±10%
Noise: 26dB(A)
Fan interface: 4PIN PWM
Bearing type: HDB
CL-B40S DIG ARGB
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x94x150mm
Heat pipe: Ф6mm*4
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 65.6CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 1600RPM±10%
Noise: 26dB(A)
Fan interface: 4PIN PWM
Bearing type: HDB
CL-B40S DIG BK
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x94x150mm
Heat pipe: Ф6mm*4
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 65.6CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 1600RPM±10%
Noise: 26dB(A)
Fan interface: 4PIN PWM
Bearing type: HDB
CL-B40S DIG BK ARGB
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x94x150mm
Heat pipe: Ф6mm*4
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 65.6CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 1600RPM±10%
Noise: 26dB(A)
Fan interface: 4PIN PWM
Bearing type: HDB
B60
6 pcs Optimized heat pipes, Intelligent digital display
CL-B60
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x97x154mm
Heat pipe: Ф6mm*6
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 65.6CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 1600RPM±10%
Noise: 26dB(A)
Fan interface: 4PIN PWM
Bearing type: FDB
CL-B60 DIG
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x97x154mm
Heat pipe: Ф6mm*6
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 65.6CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 1600RPM±10%
Noise: 26dB(A)
Fan interface: 4PIN PWM
Bearing type: FDB
CL-B60 DIG BK
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x97x154mm
Heat pipe: Ф6mm*6
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 65.6CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 1600RPM±10%
Noise: 26dB(A)
Fan interface: 4PIN PWM
Bearing type: FDB
CL-B60 DIG BK ARGB
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x97x154mm
Heat pipe: Ф6mm*6
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 65.6CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 1600RPM±10%
Noise: 26dB(A)
Fan interface: 4PIN PWM
Bearing type: FDB
CL-B60T CRT ARGB
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x97x154mm
Heat pipe: Ф6mm*6
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 65.6CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 1600RPM±10%
Noise: 26dB(A)
Fan interface: 4PIN PWM
Bearing type: FDB
CL-B60T CRT H ARGB
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x97x154mm
Heat pipe: Ф6mm*6
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 65.6CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 1600RPM±10%
Noise: 26dB(A)
Fan interface: 4PIN PWM
Bearing type: FDB
CL-B60S CRT ARGB
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x97x154mm
Heat pipe: Ф6mm*6
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 65.6CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 1600RPM±10%
Noise: 26dB(A)
Fan interface: 4PIN PWM
Bearing type: FDB
CL-B60S CRT H ARGB
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x97x154mm
Heat pipe: Ф6mm*6
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 65.6CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 1600RPM±10%
Noise: 26dB(A)
Fan interface: 4PIN PWM
Bearing type: FDB
CL-B60T LCD WH
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x97x154mm
Heat pipe: Ф6mm*6
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 65.6CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 1600RPM±10%
Noise: 26dB(A)
Fan interface: 4PIN PWM
Bearing type: FDB
CL-B60T LCD BK
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x97x154mm
Heat pipe: Ф6mm*6
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 65.6CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 1600RPM±10%
Noise: 26dB(A)
Fan interface: 4PIN PWM
Bearing type: FDB
P50
5 Heat pipe single tower air cooling
CL-P50i BK
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x97x154mm
Heat pipe: Ф6mm*6
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 65.6CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 1600RPM±10%
Noise: 26dB(A)
Fan interface: 4PIN PWM
Bearing type: FDB
CL-P50i ARGB
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x97x154mm
Heat pipe: Ф6mm*6
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 65.6CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 1600RPM±10%
Noise: 26dB(A)
Fan interface: 4PIN PWM
Bearing type: FDB
CL-P50i WH ARGB
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x97x154mm
Heat pipe: Ф6mm*6
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 65.6CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 1600RPM±10%
Noise: 26dB(A)
Fan interface: 4PIN PWM
Bearing type: FDB
CL-P50i DIG
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x97x154mm
Heat pipe: Ф6mm*6
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 65.6CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 1600RPM±10%
Noise: 26dB(A)
Fan interface: 4PIN PWM
Bearing type: FDB
CL-P50i DIG ARGB
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 120x97x154mm
Heat pipe: Ф6mm*6
Fan size: 120*120*25mm
Fan voltage: 12V
Fan current: 0.15A
Fan air volume: 65.6CFM
Fan air pressure: 1.8mm/H₂O
Fan Speed: 1600RPM±10%
Noise: 26dB(A)
Fan interface: 4PIN PWM
Bearing type: FDB

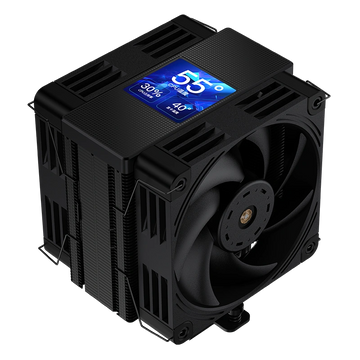

P60TP
6 Heat pipe dual tower air cooling
CL-P60TP
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 130x139x157mm
Heat pipe: Ф6mm*6
Fan size: 120*120*28mm (T28-B15)
130*130*25mm(C130B15)
Fan voltage: 12V
Fan current: 0.28A/0.26A
Fan air volume: 89CFM/85CFM
Fan air pressure: 5.5 /2.0 mm/H₂O
Fan Speed: 2550/1650 RPM±10%
Noise: 32/28.5 dB(A)
Fan interface: 4PIN PWM
Bearing type: FDB
CL-P60TP BK
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 130x139x157mm
Heat pipe: Ф6mm*6
Fan size: 120*120*28mm (T28-B15)
130*130*25mm(C130B15)
Fan voltage: 12V
Fan current: 0.28A/0.26A
Fan air volume: 89CFM/85CFM
Fan air pressure: 5.5 /2.0 mm/H₂O
Fan Speed: 2550/1650 RPM±10%
Noise: 32/28.5 dB(A)
Fan interface: 4PIN PWM
Bearing type: FDB
CL-P60TP BK ARGB
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 130x139x157mm
Heat pipe: Ф6mm*6
Fan size: 120*120*28mm (T28-B15)
130*130*25mm(C130B15)
Fan voltage: 12V
Fan current: 0.28A/0.26A
Fan air volume: 89CFM/85CFM
Fan air pressure: 5.5 /2.0 mm/H₂O
Fan Speed: 2550/1650 RPM±10%
Noise: 32/28.5 dB(A)
Fan interface: 4PIN PWM
Bearing type: FDB
CL-P60TP WH
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 130x139x157mm
Heat pipe: Ф6mm*6
Fan size: 120*120*28mm (T28-B15)
130*130*25mm(C130B15)
Fan voltage: 12V
Fan current: 0.28A/0.26A
Fan air volume: 89CFM/85CFM
Fan air pressure: 5.5 /2.0 mm/H₂O
Fan Speed: 2550/1650 RPM±10%
Noise: 32/28.5 dB(A)
Fan interface: 4PIN PWM
Bearing type: FDB
CL-P60TP WH ARGB
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 130x139x157mm
Heat pipe: Ф6mm*6
Fan size: 120*120*28mm (T28-B15)
130*130*25mm(C130B15)
Fan voltage: 12V
Fan current: 0.28A/0.26A
Fan air volume: 89CFM/85CFM
Fan air pressure: 5.5 /2.0 mm/H₂O
Fan Speed: 2550/1650 RPM±10%
Noise: 32/28.5 dB(A)
Fan interface: 4PIN PWM
Bearing type: FDB
P70 LCD
7 Heat pipe single tower air cooling
CL-P70 LCD BK
Platform (lntel): LGA115X/1200/1700/1851
Platform (AMD): AM4/AM5
Product size: 130x110x157mm
Heat pipe: Ф6mm*6
Fan size: 120*120*28mm (H28-B1)
Fan voltage: 12V
Fan current: 0.18A/0.16A
Fan air volume: 73CFM/67CFM
Fan air pressure: 3.2 /2.6 mm/H₂O
Fan Speed: 2200/2000 RPM±10%
Noise: 28.5/28 dB(A)
Fan interface: 4PIN PWM
Bearing type: FDB
LCD Display: 2,51"
