Water Cooling
1U Series
CS-3647-W1N
- CPU Socket: Intel® 3647

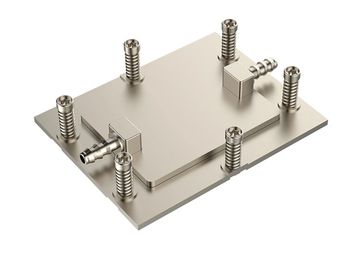

- Cold plate
- Dimensions: 108mm*78mm*19.1mm
- Fin thickness: 0.15mm
- Fin spacing: 0.15mm
- TDP: 400W
- Material: Cu base + copper fins
CS-4189-W1
- CPU Socket: Intel® 4189
- Cold plate
- Dimensions: 113mm*78mm*19.1mm
- Fin thickness: 0.15mm
- Fin spacing: 0.15mm
- TDP: 400W
- Material: Cu base + copper fins
CS-4677-W1
- CPU Socket: Intel® 4677
- Cold plate
- Dimensions: 118mm*78mm*19.1mm
- Fin thickness: 0.15mm
- Fin spacing: 0.15mm
- TDP: 400W
- Material: Cu base + copper fins
CS-4677-W2
- CPU Socket:Intel® 4677
- Cold plate
- Dimensions: 118mm*78mm*25mm
- Fin thickness: 0.15mm
- Fin spacing: 0.15mm
- TDP: 400W
- Material: Cu base + copper fins
CS-SP3-W1
- CPU Socket: AMD® SP3/TR4
- Cold plate
- Dimensions: 113mm*80mm*19.1mm
- Fin thickness: 0.15mm
- Fin spacing: 0.15mm
- TDP: 400W
- Material: Cu base + copper fins
CS-SP5-W1
- CPU Socket: AMD® SP5
- Cold plate
- Dimensions: 118mm*92.4mm*19.1mm
- Fin thickness: 0.15mm
- Fin spacing: 0.15mm
- TDP: 400W
- Material: Cu base + copper fins
CS-1700-1UW10

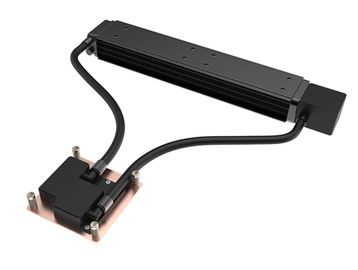

AIO
- CPU Socket: Intel® 1700
- AIO
- Radiator: 374mm*57mm*40mm
- Cold plate: 90mm*90mm*22.25mm
- Fin thickness: 0.15mm
- Fin spacing: 0.15mm
- TDP: 350W
CS-4189-1UW8
AIO
- CPU Socket: Intel® 4189
- AIO
- Radiator: 350mm*200mm*25mm
- Cold plate: 113mm*78mm*39.5mm
- Fin thickness: 0.15mm
- Fin spacing: 0.15mm
- TDP: 400W
CS-115x-1UW1
AIO
- CPU Socket: Intel® 115x
- AIO
- Radiator: 350mm*200mm*40mm
- Fin thickness: 0.15mm
- Fin spacing: 0.15mm
- TDP: 350W
2U Series
CS-1700-2UW20
AIO
- CPU Socket: Intel® 1700
- AIO
- Radiator: 391mm*45mm*77mm
- Cold plate: 118mm*92.4mm*39.5mm
- Pump Voltage: 12V
- Pump Current: 0.30A
- Pump Speed: 1000 - 3000 RPM±10%
- Tube length: 400mm
- TDP: 300W
CS-AIO-2UW22
AIO
- CPU Socket: Intel® 4677/4189 AMD® SP3/TR4/SP5
- AIO
- Radiator: 391mm*45mm*77mm
- Cold plate: 113mm*78mm*39.5mm
- Pump Voltage: 12V
- Pump Current: 0.35A
- Pump Speed: 1200 - 3300 RPM±10%
- Tube length: 400mm
- TDP: 500-750W
CS-SP5-2UW20
AIO
- CPU Socket: Intel® 4677/4189 AMD® SP3/TR4/SP5
- AIO
- Radiator: 391mm*45mm*77mm
- Cold plate: 118mm*92.4mm*39.5mm
- Pump Voltage: 12V
- Pump Current: 0.35A
- Pump Speed: 1200 - 3300 RPM±10%
- Tube length: 400mm
- TDP: 600W
4U Series
CS-1700-4UW32
AIO
- CPU Socket: Intel® 1700
- Radiator: 397mm*27.2mm*120mm
- Cold plate: 69.5mm*69.5mm*42mm
- Pump Voltage: 12V
- Pump Current: 0.30A
- Pump flowrate: 2.2L/min
- Tube length: 400mm
- Fan size: 120*120*28mm
- Fan voltage: 12V
- Fan current: 0.35A
- Fan air volume: 70 CFM
- Fan air pressure: 3.5 mm/H₂O
- Fan Speed: 1000 - 2200 RPM±10%
- Noise: 27.5dB(A)
- Fan interface: 4PIN PWM
- TDP: 300W
CS-AIO-4UW30
AIO
- CPU Socket: Intel® 4677/4189 AMD® SP3/TR4/SP5
- Radiator: 394mm*120mm*27.2mm
- Cold plate: 113mm*78mm*39.5mm
- Pump Voltage: 12V
- Pump Current: 0.35A
- Pump Speed: 1200 - 3300 RPM±10%
- Tube length: 500mm
- Fan size: 120*120*28mm
- Fan voltage: 12V
- Fan current: 0.35A
- Fan air volume: 70 CFM
- Fan air pressure: 3.5 mm/H₂O
- Fan Speed: 600-2250RPM±10%
- Noise: 27.5dB(A)
- Fan interface: 4PIN PWM
- TDP: 800W
CS-4189-4UW35
AIO
- CPU Socket: Intel® 4189
- Radiator: 397mm*38mm*120mm
- Cold plate: 113mm*78mm*39.5mm
- Pump Voltage: 12V
- Pump Current: 0.35A
- Pump flowrate: 2.2L/min
- Fan size: 120*120*28mm
- Fan voltage: 12V
- Fan current: 0.35A
- Fan air volume: 70 CFM
- Fan air pressure: 3.5 mm/H₂O
- Fan Speed: 1000-2200 RPM±10%
- Noise: 27.5dB(A)
- Fan interface: 4PIN PWM
- TDP: 1000W
